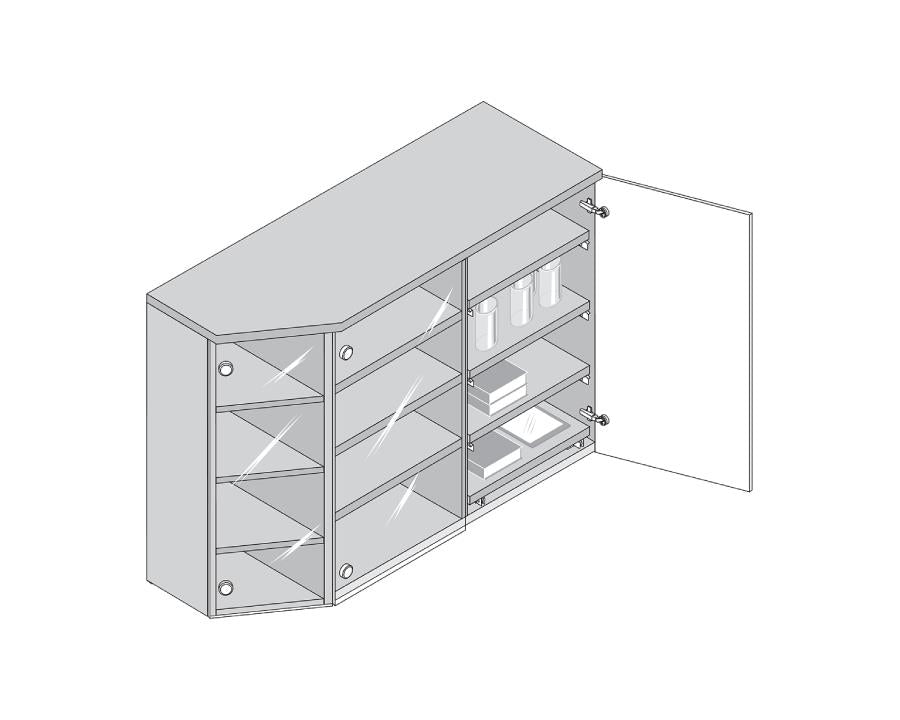

Blum CLIP top Glass Door Hinge 94 Degree Opening Angle. Half Overlay. Boss: Screw-On 75T4200
Blum CLIP top Glass Door Hinge 94 Degree Opening Angle. Half Overlay. Boss: Screw-On 75T4200
Regular price
$15.00 AUD
Regular price
Sale price
$15.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Made for front thicknesses from 4.5 to 7mm, Blum CLIP top glass door hinge 94° hinge for glass doors offers tool-free fast assembly and removal of the door from the cabinet using clip-on assembly method.
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick, and easy. Every door equipped with Blum hinges opens and closes with reliable ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Application: Glass door hinge
● Cranking: Dual application
● Opening angle: 94°
● Closing mechanism: With spring
● Cover cap type: 90M2603
● Cover cap type: 70.1553
● Boss material: Nylon boss
● Boss finish: Black
● Boss assembly: Screw-on
● Flange height: 2.5mm
● Diameter hinge boss drilling: 26mm
● Distance between drillings: 22mm
● Minimum drilling distance: 5.5mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Collision measurement (hinge arm height): 23mm
● Fixed dimension/factory setting: 0.5mm
● Type of side adjustment: With screw
● Side adjustment: +0.5/- 3.5 mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment +/-2mm
● Gap: 3mm
● Item package: 1 piece
● Packaging: Commercial packing
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Made for front thicknesses from 4.5 to 7mm, Blum CLIP top glass door hinge 94° hinge for glass doors offers tool-free fast assembly and removal of the door from the cabinet using clip-on assembly method.
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick, and easy. Every door equipped with Blum hinges opens and closes with reliable ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Application: Glass door hinge
● Cranking: Dual application
● Opening angle: 94°
● Closing mechanism: With spring
● Cover cap type: 90M2603
● Cover cap type: 70.1553
● Boss material: Nylon boss
● Boss finish: Black
● Boss assembly: Screw-on
● Flange height: 2.5mm
● Diameter hinge boss drilling: 26mm
● Distance between drillings: 22mm
● Minimum drilling distance: 5.5mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Collision measurement (hinge arm height): 23mm
● Fixed dimension/factory setting: 0.5mm
● Type of side adjustment: With screw
● Side adjustment: +0.5/- 3.5 mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment +/-2mm
● Gap: 3mm
● Item package: 1 piece
● Packaging: Commercial packing
