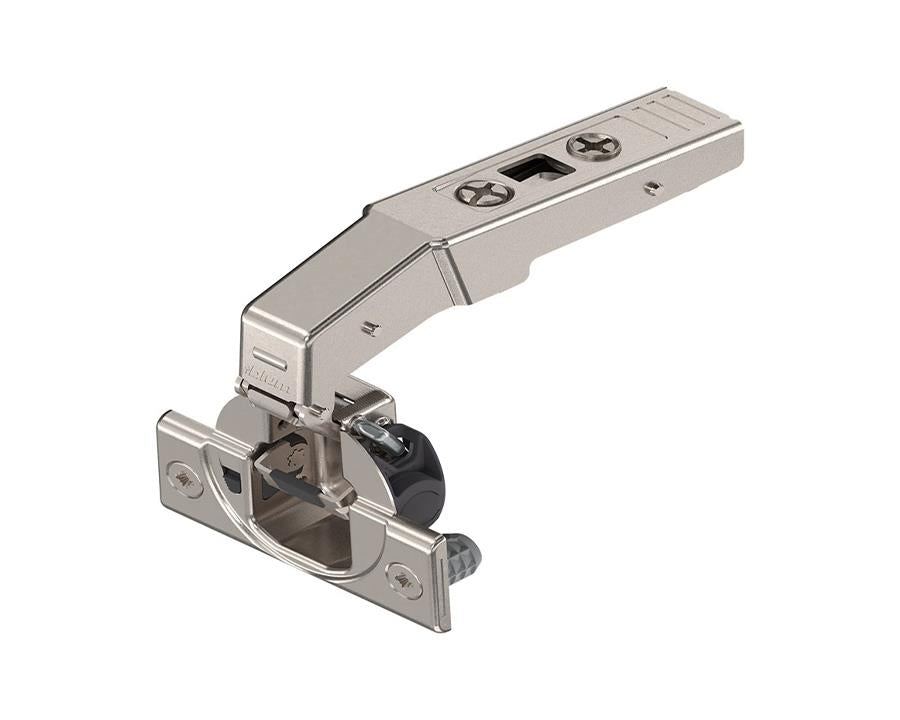

Blum CLIP top BLUMOTION Blind Corner Soft Close Hinge 95 Degree, Inset Application. Boss: Knock-In 79B9580
Blum CLIP top BLUMOTION Blind Corner Soft Close Hinge 95 Degree, Inset Application. Boss: Knock-In 79B9580
Regular price
$27.50 AUD
Regular price
Sale price
$27.50 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
CLIP top BLUMOTION adapts to the dynamics of every door. So, all doors have a smooth closing action regardless of size, weight, or force with which you close them. Available in 95°, 107°,110° and 155° angles, the BLUMOTION feature deactivated on one or both hinges to ensure doors close at the right speed. Snap these doors on and off with CLIP technology and make easy three-dimensional and cam adjustments.
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick, and easy. Every door equipped with Blum hinges opens and closes with reliable ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Application: Blind corner hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap type: 90M2503
● Cover cap type: 70.1503 (BPC10021)
● Cover cap type: 70T3504-boss cover cap (BHBC)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: Knock-in
● Flange width: 57mm
● Flange length: 22mm
● Flange height: 3.2mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Collision measurement (hinge arm height): 21mm
● Fixed dimension/factory setting: -8mm
● Type of side adjustment: With screw
● Side adjustment: +/-2.5mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +/-1mm
● Gap: 3mm
● Item package: 1 piece
● Packaging: Commercial packing
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
CLIP top BLUMOTION adapts to the dynamics of every door. So, all doors have a smooth closing action regardless of size, weight, or force with which you close them. Available in 95°, 107°,110° and 155° angles, the BLUMOTION feature deactivated on one or both hinges to ensure doors close at the right speed. Snap these doors on and off with CLIP technology and make easy three-dimensional and cam adjustments.
Blum’s tried and tested CLIP mechanism makes door to cabinet assembly tool free, quick, and easy. Every door equipped with Blum hinges opens and closes with reliable ease.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Application: Blind corner hinge
● Opening angle: 95°
● Closing mechanism: With spring
● Hinge variant: With integrated BLUMOTION
● Cover cap type: 90M2503
● Cover cap type: 70.1503 (BPC10021)
● Cover cap type: 70T3504-boss cover cap (BHBC)
● Boss material: Steel boss
● Boss finish: Nickel plated
● Boss assembly: Knock-in
● Flange width: 57mm
● Flange length: 22mm
● Flange height: 3.2mm
● Diameter hinge boss drilling: 35mm
● Diameter of fixing holes: 8mm
● Distance between drillings: 45mm
● Eccentric position of fixing holes to hinge boss hole: 9.5mm
● Boss drilling depth: 13mm
● Minimum drilling distance: 3mm
● Maximum drilling distance: 7mm
● Arm material: Steel
● Arm finish: Nickel plated
● Collision measurement (hinge arm height): 21mm
● Fixed dimension/factory setting: -8mm
● Type of side adjustment: With screw
● Side adjustment: +/-2.5mm
● Type of depth adjustment: Convenient with spiral screw
● Depth adjustment: +/-1mm
● Gap: 3mm
● Item package: 1 piece
● Packaging: Commercial packing
