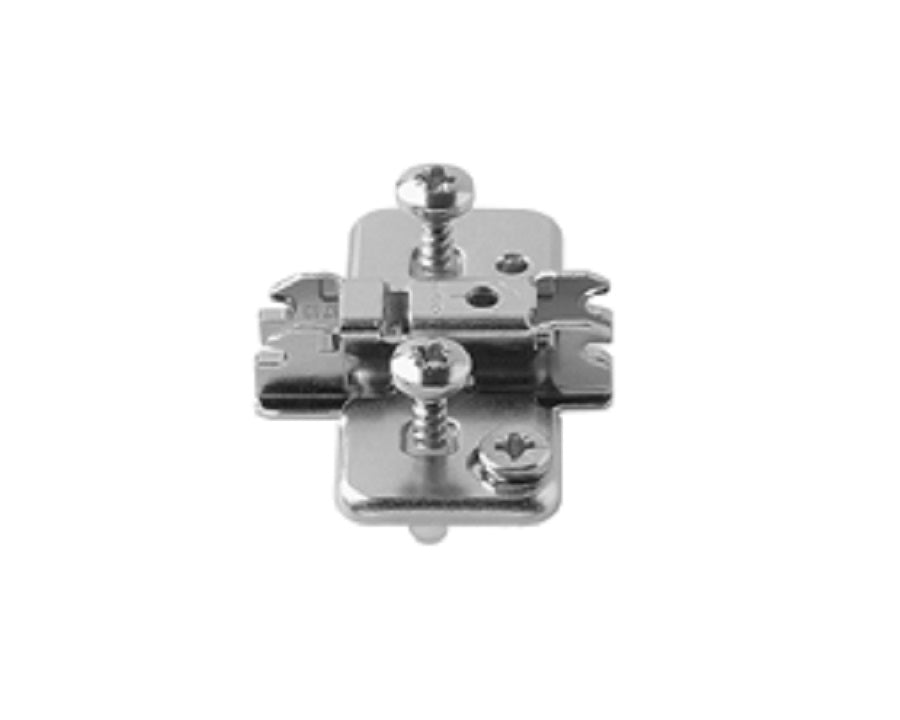

Blum CLIP Mounting Plate, 3mm EXPANDO. 2 Part 174H7130E
Blum CLIP Mounting Plate, 3mm EXPANDO. 2 Part 174H7130E
Regular price
$3.40 AUD
Regular price
Sale price
$3.40 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes:11.5mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Height: 11.5mm
● Spacing: 3mm
● Angle: 0
● Item package: 1 piece
● Packaging: Commercial packing
● Material of bottom part: Steel
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Steel
● Surface of bottom part: Nickel plated
● Fixing: EXPANDO (pre-mounted screws with split dowel)
● Distance cabinet front edge to first fixing position: 37mm
● Diameter of fixing holes: 5mm
● Drilling depth of fixing holes:11.5mm
● Mounting plates height adjustment: With cam
● Height adjustment: +/-2mm
● Height: 11.5mm
● Spacing: 3mm
● Angle: 0
● Item package: 1 piece
● Packaging: Commercial packing
● Material of bottom part: Steel
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions
-
Tailor our items to suit your needs
All products on our store can be changed and tailored to your needs. This includes colour, sizes, and hardware.
-
No Refunds
If any custom changes are made to any item on our store, we will require signatures. No refunds will be accepted unless there is damage or fault caused by us.
