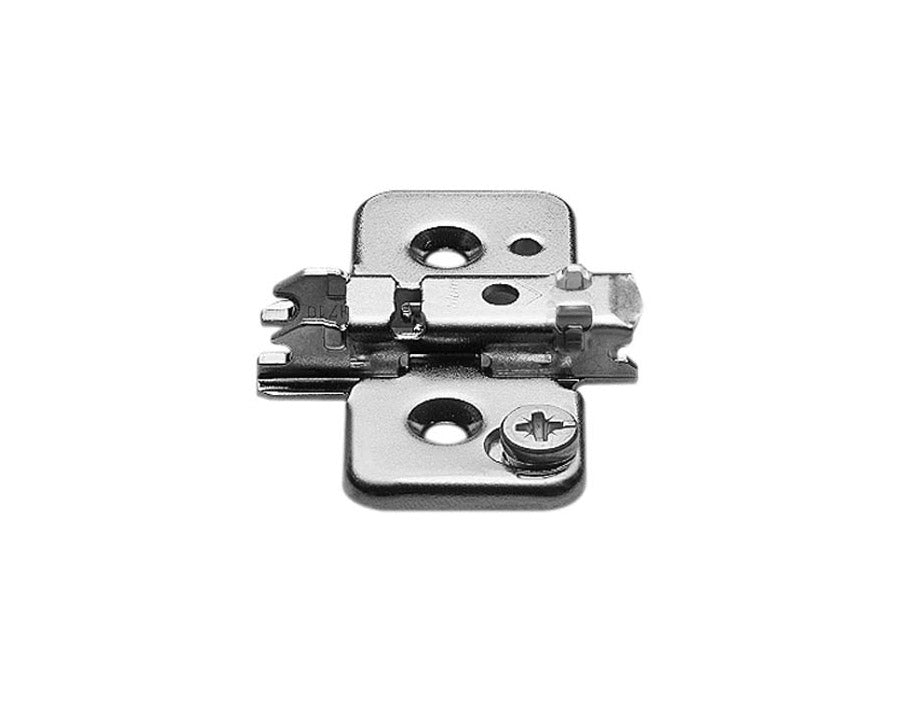

Blum CLIP Mounting Plate, 0mm 2 Part 173H7100
Blum CLIP Mounting Plate, 0mm 2 Part 173H7100
Regular price
$2.80 AUD
Regular price
Sale price
$2.80 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Ingenuity and inventive powers create the functionality that is unique to Blum. Our hinge systems stand for reliable function, enhanced adjustment and assembly ease and attractive design, our hinges allow for 3-dimensional adjustment.
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Zinc
● Surface of bottom part: Self-colour
● Fixing: For chipboard screws
● Distance cabinet front edge to first fixing position: 37mm
● Mounting plates height adjustment: Through lower and upper part/screws
● Height adjustment: +/-2mm
● Height: 8.5mm
● Spacing: 0
● Angle: 0
● Item package: 1 piece
● Packaging: Industrial packing
● Material of bottom part: Zinc
● Fixing positions: Fixing position 2/cruciform mounting plate
Constructed to withstand 200,000 opening and closing cycles, our hinge range offers solutions for many different applications such as wood, glass, and aluminium frame doors as well as thin and thick doors. We also offer special solutions such as blind corner and angled applications.
Features
● Rigorously tested over 200,000 times to withstand consistent opening and closing cycles
● Suitable for all applications
● 3-dimensional adjustment
● Easy assembly and adjustment
Specifications
● Mounting plate system: CLIP
● Shape of mounting plate: Cruciform
● Upper part material: Zinc
● Surface of bottom part: Self-colour
● Fixing: For chipboard screws
● Distance cabinet front edge to first fixing position: 37mm
● Mounting plates height adjustment: Through lower and upper part/screws
● Height adjustment: +/-2mm
● Height: 8.5mm
● Spacing: 0
● Angle: 0
● Item package: 1 piece
● Packaging: Industrial packing
● Material of bottom part: Zinc
● Fixing positions: Fixing position 2/cruciform mounting plate
